Fresh Air Louvers

 We manufacture Fresh Air Louvers which are used for the intake of fresh air. Our Fresh Air Louvers are made from extruded aluminum profiles. These louver blades are wrapped up on the main frame of the louver by an appropriate lsection aluminum filters. As an option for filtering, controlling and protecting the intake of air, we have fixed a bird screen and volume control dampers.


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Drum Louver

 Construction:

Frame : Constructed with high quality extruded aluminium profiles.
Drum :
 Aluminiium sheet and specially shaped extruded aluminium profiles.
Blades:
High quality extruded aluminium adjustable directional blades.
Damper:
 Opposed blade damper made with aluminium profiles.
Description:

  • Blades are fixed inside the drum body made with aluminium sheets and specially shaped profles and the opposed blade damper is attached to the drum body. The whole assembly is fixed to the frame by mechanical fasteners so as to enable rotation in the vertical direction.
  • The opposed blade damper in supply diffuser can be easily adjusted through the face of the unit by means of screw driver.
  • The louver is suitable for both long and short throw patterns with trajectory control.
  • The drum can be adjusted in the vertical direction 0 to 30 degree up or down to direct the air throw in the desired direction.
  • Foam gasket is sealed around the back of the frame to avoid air leakage.
  • Standard finishes:
    • Aluminium construction with white powder coated finish
    • Powder coated color finish as per other color codes available as option.




Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

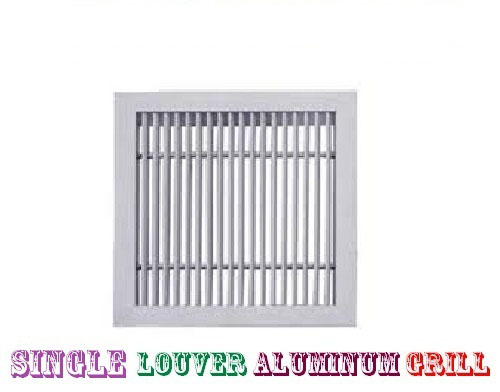

Single Louver Aluminum Grill

 We are a reputed company, offering our clients a huge assortment of Single Louver MS Grill. The offered product is used as a fan-outlet, that is used to control the flow of air. The product have a two rows of parallel and opposed configuration bar respectively, that are externally linked to optimize fan performance. Apart from this, the product is manufactured with quality supreme quality raw materials, sourced from certified vendors.


Features:

  • Controls flow of air
  • Used as Fan-outlet
  • Longer life cycle
  • Designed with Nylon Bushes for efficient, smooth and quiet operation & to avoid rattling noise
  • Aerofoil shaped blades
  • Deflection blades are adjustable manually and individually
  • Single/Double deflection with high Quality anodizing or powder coating.
  • With or Without Opposed blade Dampers
  • Can be handled in desired pattern of air- flow


Specifications:

  • Types: Single deflection
  • Double deflection: Materials
  • Extruded aluminium, mild steel or stainless steel
  • Finish: Powder coated, anodized, emulsion painted, primer coated
  • Standard 20mm blade spacing




Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Double Louver Aluminum Grill

 Our name is counted among the prominent companies, engaged in offering our clients a huge gamut of Double Louver Aluminum Section Grill. Fabricated with quality grade aluminum, this product is known for its characteristic like- easy installation, robust design. The rendered product finds its wide application for the supply and return of air process. The machine possesses ongoing interior trend quality which requires linear grilles for ceiling and side wall application.



Features/attributes:



  • Easy to install

  • Installs in ceiling and side-wall application

  • Robust and sturdy structure

  • Durable

  • Longer service life




Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Aluminum Louvers

 Backed by years of experience in these domain, we are able to render our patron, a comprehensive range of Aluminum Louvers. The offered product control both the isolation and air flow. The Louver Aluminium Section comprises a series of two row of blade both horizontally and vertically, that interlinks each other and that can be move according to desired pattern. The product is often used for the purpose of fan inlets.



Attributes:



  • Longer service life

  • Controls flow of wind

  • Capable of moving in any direction

  • Used to maximize fan performance

  • Less consumption of power

  • Easy to install




Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

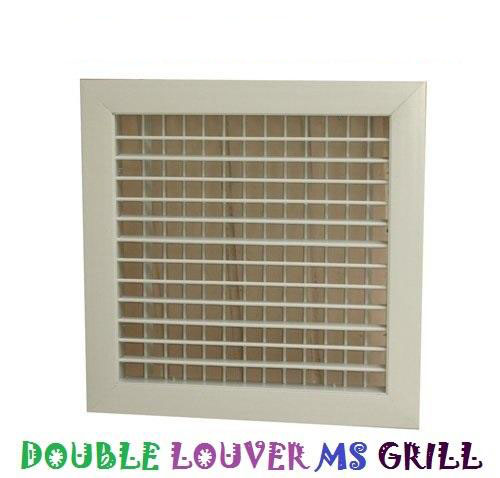

Double Louver MS Grill

 Our company is instrumental in present an array of Double Louver MS Grill.The offered product range finds its application supply and return of air process, as fresh air section exhaust discharge for protection from dust and rain. This product is power coated to ensure longer service life and durability in any working condition.



The product is also preferred for its various features and characteristic, namely:



  • Protects against dust and rain

  • Longer service life

  • Durable

  • Capable of working in any situation

  • Fabricated with top quality raw materials




Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Single Louver MS Grill

 Single Louver MS Grill provides a combination of isolation and flow control. The assembly consists of a single row of blades, all of which are externally linked in a parallel or opposed configuration depending upon the desired flow pattern. The parallel arrangement is often used on fan inlets to optimize fan performance. The opposed arrangement is used where a more linear flow is desired such as fan outlets.





Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Air Intake Louver Grills

 The commitment to quality has placed us among the top notch Outside Air Intake Louver Exporters from India. Our Air Intake Louver Grills are available with a flat surface mounting lighting fixtures and electrical outlets. They help in taking air in and out from the houses. Fabricated in square & rectangular shapes, these ceiling diffusers are compatible with modular ceiling applications, where any size of diffuser replaces ceiling tile. These Fresh Air Intake Louvers are made from quality raw material to ensure durability, resistance to moisture and resistance against wear & tear.


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Acoustic louver

 Acoustic Louver has a sound baffle designed to allow airflow through ventilation openings while reducing the radiation of noise. Acoustic louvers

used in conjunction with machine sound enclosures, sound barrier walls and sound control rooms to allow silenced airflow.

 Acoustic louver : 6" /8" blade. We supply an extensive range of Acoustic Louver , which are available in various sizes, shapes and designs. Our Acoustic Louver are being widely used for regulating the airflow through fans, ducting, tunnels or chambers. We can also customize the products as per the specifications, detailed by our clients.


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Intake louvers

 Aluminum


GI { Galvanized Iron }

Introduction


We manufacture fresh air louvers which are used for the intake of fresh air. Our air control louvers and dampers are made from extruded aluminum profiles. These louver blades are wrapped up on the main frame of the louver by an appropriate l section aluminum filters. As an option for filtering, controlling and protecting the intake of air, we have fixed a bird screen and volume control dampers.




Other Information

  • Pay Mode Terms: T/T (Bank Transfer)
